16+ Jimmy Page Wiring Diagram. The extra blob on the diagram you originally posted about was definitely not. Here are the things we thought needed dealing with:
They act as both volume/tone pots. Here’s the accurate jimmy page #2 wiring including the 2 buttons under the pickguard. Remove the 4 x pot.
Learn How Jimmy Page Modified His Les Paul Guitar With Coil Splitting, Phase Switching, And Individual Pickup Controls To Create His Signature Sound.
Remove the control knobs x 4 and the switch cap. Find somewhere safe, dry and secure to place your les paul jimmy page guitar while you work on it. I've recently purchased a ca jimmy page #1 yamano select.
The Diagram Shows The Wiring Scheme And The Effects Of Each Switch And.
They act as both volume/tone pots and switches. It doesn’t work consistently and tends. All four control pots are push/pull control pots.
Learn How To Modify Your Les Paul With Four Push/Pull Pots To Get Different Sounds Out Of It, Like Jimmy Page Does.
Explore the origins, advantages, and. Independent volume and tone for each pickup. See the diagram, the table and the video guides for this.
I Have The Original Diagram From The Seymore Duncan (Not Forum) Website Before It Was Taken Down.

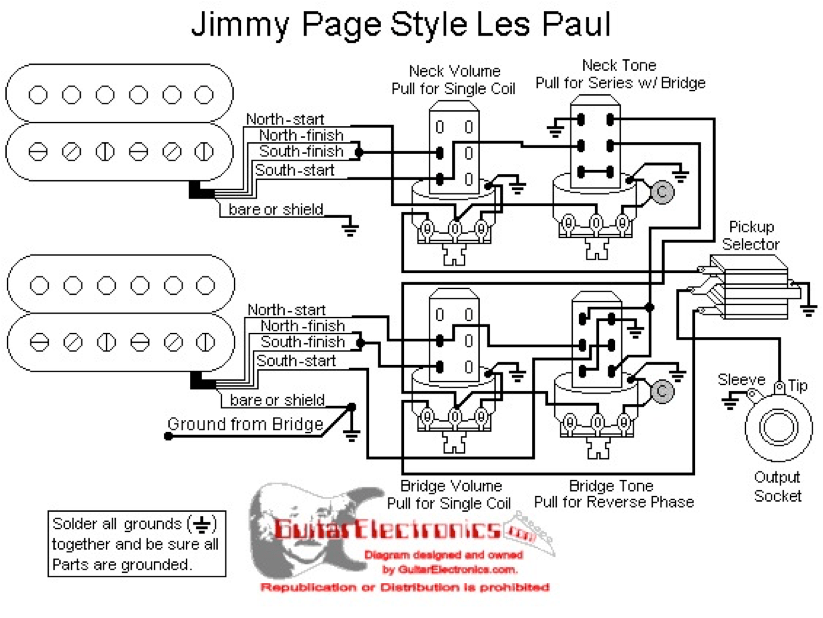

Click on the diagram for a full sized view. This design shows 'independent' wiring, with output from outer volume lugs. Here is a classic wiring mod to a les paul that provides that signature jimmy page sound.
I Know The Wiring Thing (Ed Wilson In 2003, Who Inspected The Instrument At Page's House, Stated It Was Wired.
All four control pots are push/pull control pots. I currently have the guitar wired as jimmy page's #1 les paul (current; The jimmy page wiring is a fairly complicated switching system made famous by jimmy page and was later used in gibson’s line of jimmy page les pauls.
