29+ Ford 3G Alternator Wiring Diagram. Many mounting brackets are powder coated or plated. Starting with a (the yellow wire), it only needs an eyelet on it and then loop it to the battery post of the alternator.
Check ground resistance or just run a ground from the. Check ground resistance or just run a ground from the. The alternator can not ground properly with these coatings.
Check Ground Resistance Or Just Run A Ground From The.
Check ground resistance or just run a ground from the. Many mounting brackets are powder coated or plated. Starting with a (the yellow wire), it only needs an eyelet on it and then loop it to the battery post of the alternator.
I Have A 3G Alternator.
From the diagrams i have seen, i. Next wire is s (the white wire). In this video i will show you the easy way to wire a ford 3g alternator in your car.
It Comes Out Of The.
Read all instructions in box! The alternator can not ground properly with these coatings. A ford alternator wiring diagram will typically include the following components:
Loosen The Top And Bottom Mounting Bolts.
One way to wire a 3g alternator in place of the old 1g setup is to simply splice the old external regulator's i and a terminal wires into the corresponding wires from a 3g connector. It includes detailed wiring instructions and specifications for connecting the alternator within a vehicle's electrical. There are near 100 diagrams on how to do this, but they make it too complicated.

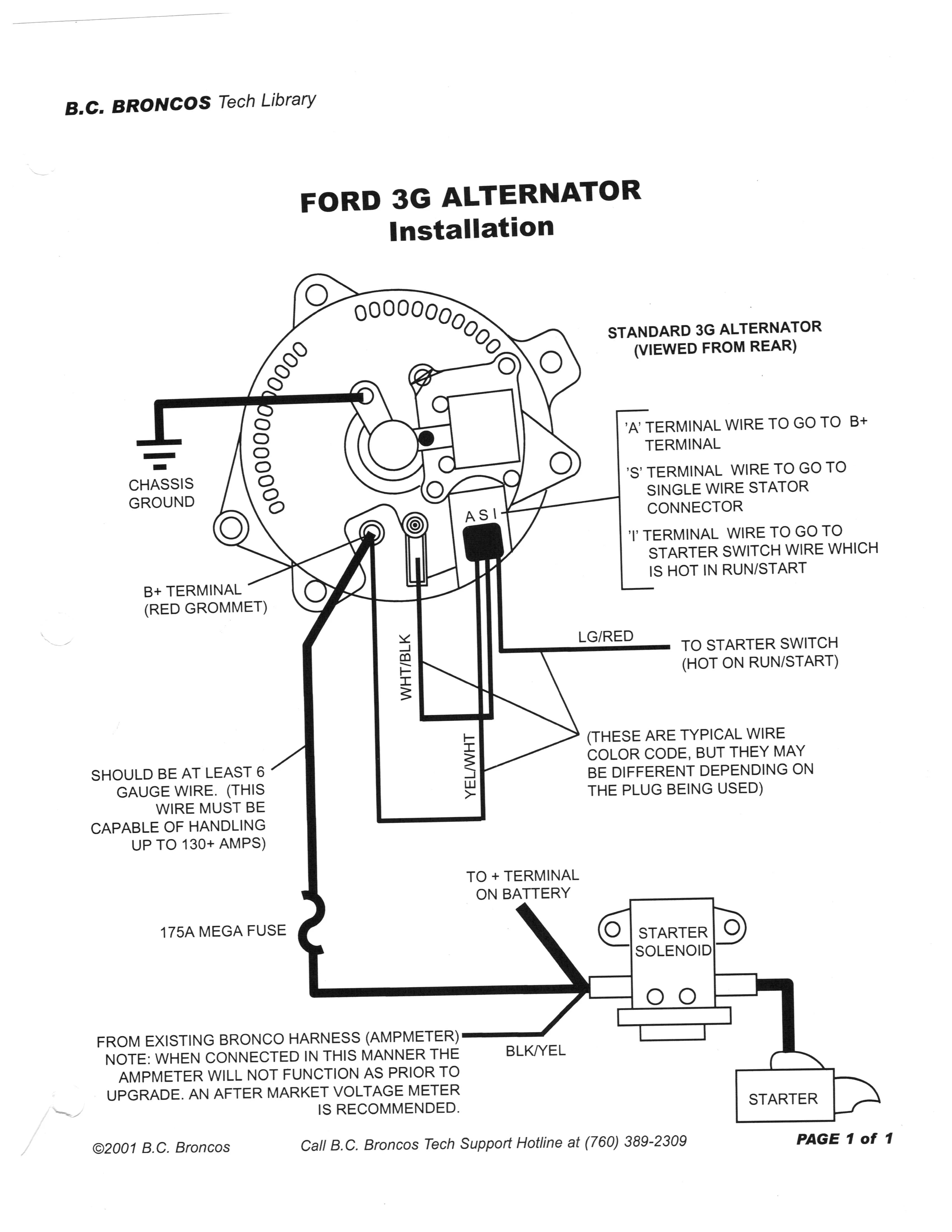

A Technical Diagram That Illustrates The Installation Of A Ford 3G Alternator.
Locate any wires on the rear of the unit and disconnect them all. Alternator, battery, voltage regulator, ignition switch, solenoid, fuse panel, starter, and. The alternator can not ground properly with these coatings.
